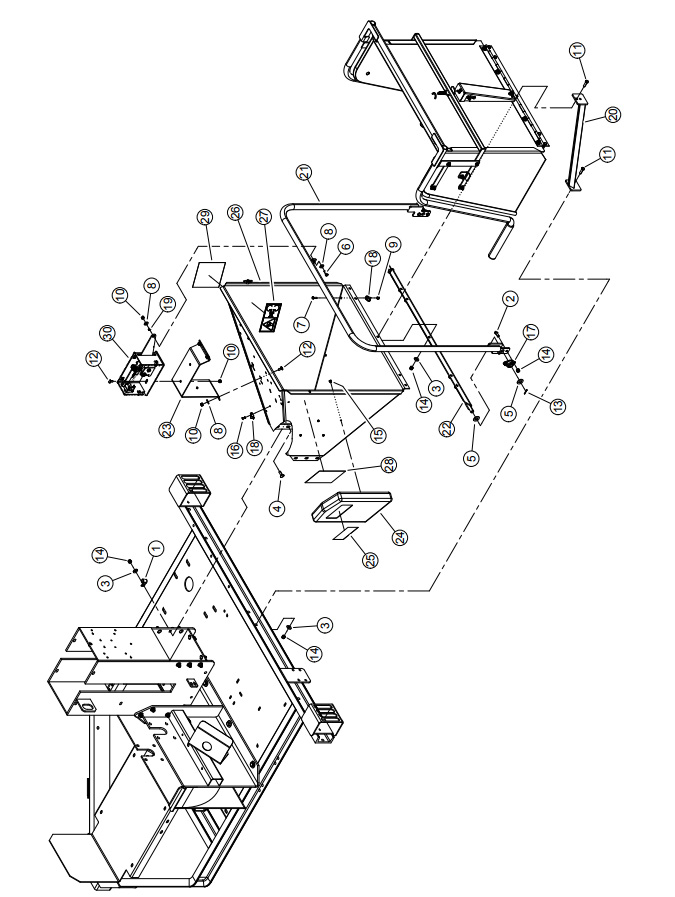

	Ссылка №	Артикул	Наименование	Цена
	1/13		CE COMPLIANT
	1	14048-00	CLAMP, 9/16" COATED
	2	15006	BOLT, 3/8 X 1 HEX HD GR5 ZP
	3	15031	WASHER, 3/8 FLAT ZP
	4	15058	BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP
	5	15129	WASHER, 5/8 SAE FLAT ZP
	6	15219	BOLT, 5/16 X 1 HHCS GR5 NC ZP
	7	15239	BOLT, 1/4 X 1 CRG GR5 NC ZP
	8	15250	WASHER, 5/16 FLAT ZP
	9	15355	NUT, 1/4 NE NYLOCK ZP
	10	15356	NUT, 5/16 NE NYLOCK ZP
	11	15364	BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP
	12	15367	BOLT, 5/16 X 3/4 CRG GR5 NC ZP
	13	15375	PIN, 1/8 X 1.00 ZP COTTER
	14	15388	NUT, 3/8 NE NYLOCK ZP
	15	15827-00	RIVET, AL BLIND 1/4 X 1/2 DOME HEAD
	16	15828-00	RIVET, AL BLIND 1/4 X 3/4 DOME HEAD
	17	17897	BEARING, SIDE FLANGE MOUNT, 5/8
	18	18549-00	CLAMP, CABLE MOUNT
	19	69126	SPACER, IDLER PIVOT
	20	72696-12	WELDMENT, CHUTE SUPPORT
	21	74169-12	WELDMENT, CONTROLARM
	22	74171-12	WELDMENT, CONTROL PIVOT
	23	75243-12	MOUNT, SWITCH BOX
	24	77113-00	ASSEMBLY, MANUAL CONTAINER, SERVICE PART (INCLUDES ITEM 25)
	25	14942-00	DECAL, MUTILINGUAL MANUAL
	26	77126-00	ASSEMBLY, BIG CHIPPER CHUTE, SERVICE PART (INCLUDES ITEMS 29 - 31)
	27	12175	DECAL, BLADE DANGER ISO
	28	12747	DECAL, FEED POSITION
	29	12748	DECAL, FEED POSITION
	30	77527-00	ASSEMBLY, SWITCH BOX
	17320	17320	STRAP, 11 IN. BLACK TIE (NOT SHOWN)
