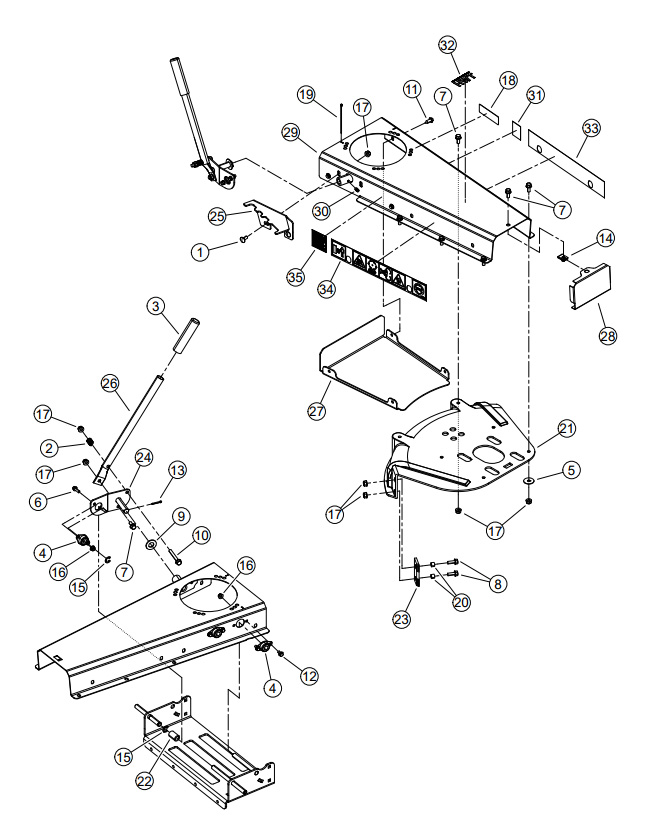

	Ссылка №	Артикул	Наименование	Цена
	1	0103-0909-00	BOLT, 5/16-18 ? 3/4 SN GR5 CRG
	2	12177	SPRING, HEAVY DUTY COMPRESSION
	3	12325	GRIP, TILT CONTROL
	4	12574	BEARING, 1/2 FLANGE
	5	15040	WASHER, 5/16" FENDER ZP
	6	15079-00	BOLT, 1/4-20 ? 3/4 FLANGE GR5 CZP
	7	15117-00	BOLT, 5/16 ? 3/4 FLANGE NC
	8	15119-00	BOLT, 5/16 ? 7/8 FLANGE NC
	9	15129	WASHER, 5/8 SAE FLAT
	10	15138-00	BOLT, 5/16 ? 2-1/2 FLANGE NC
	11	15176	SCREW, 11/32-12 ? 7/8 FLANGE T-AB
	12	15344	BOLT, 1/4-20 ? 1/2 SERRATED FLANGE GR5
	13	15375	PIN, 1/8 ? 1.00 ZP COTTER
	14	15402	NUT, 5/16"-18 TINNERMAN U-TYPE
	15	15683-00	CLIP, 1/2" E
	16	15900-00	NUT, 1/4-20 NYLOCK FLANGE
	17	15904-00	NUT, 5/16-18 NYLOCK FLANGE
	18	16155	DECAL, SERIAL NUMBER
	19	16900	STRAP, 4 IN BLACK
	20	33672-00	SPACER, PLASTIC TRIMMER SHIELD
	21	33681-00	SHIELD, TRIMMER
	22	70369	SPACER, .75 ? 1.18
	23	70856	KNIFE, RECTANGULAR SHREDDING
	24	75391-12	WELDMENT, AXLE PIVOT HWT
	25	75788-12	BRACKET, TILT HANDLE HWT
	26	75924-12	HANDLE, HWT HEIGHT ADJUST
	27	77844-12	PLATE, BODY BOTTOM HWT
	28	78013-12	COVER, METAL HW TRIMMERS
	29	78066-00	ASSEMBLY, HWT BODY WITH DECALS (includes Items 30-35)
	30	12275	ZERK, STRAIGHT 1/4-28 UNF MALE SELF-TAP .58 OVERALL LG
	31	32392-00	DECAL, ECHO Bear Cat
	32	33461-00	DECAL, HWT TILT TRIMMER
	33	33853-00	DECAL, HW SAFETY INFORMATION
	34	33854-00	DECAL, HW MAINTENANCE INFORMATION
	35	33883-00	DECAL, SPARK ARRESTOR
	12/18		HIGH WHEELED TRIMMER
