| Ссылка № | Артикул | Наименование | Цена | ||
|

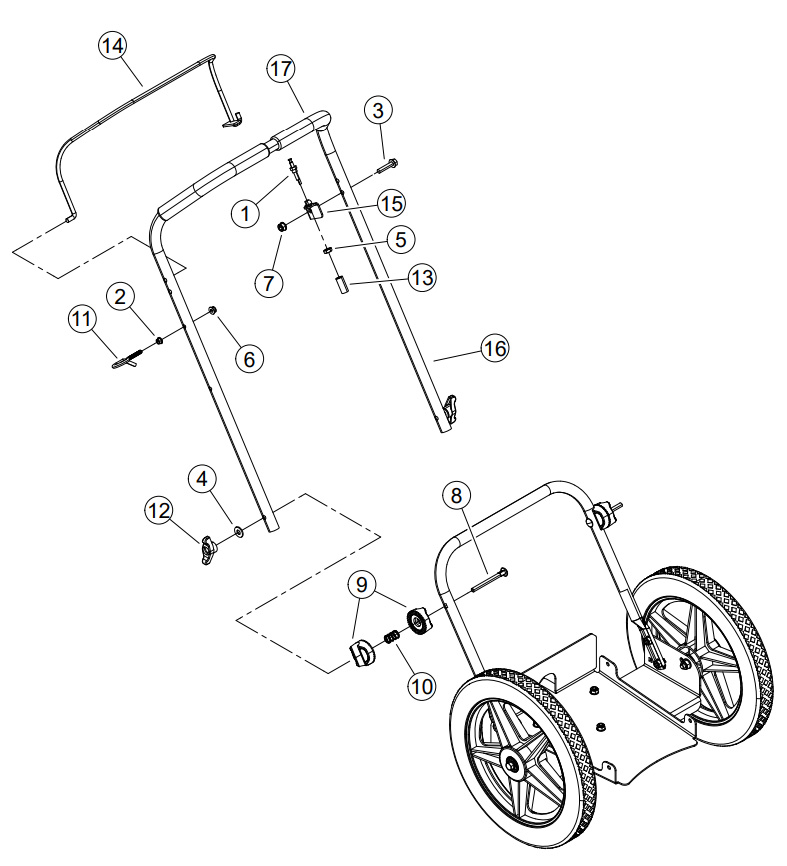

9/17 | SN: H05709 - K03076 | HANDLE BAR | ||
|
|
1 | 78093-00 | SWITCH, ENGINE KILL (OBSOLETE, WAS 12014. FOR SERVICE ORDER PN 78093-00) | ||
|
|
2 | 15053 | NUT, 1/4"-20 SERRATED FLANGE NC ZP | ||
|
|
3 | 15122-00 | BOLT, 5/16 X 1-1/2 FLANGE NC | ||
|
|
4 | 15250 | WASHER, 5/16 FLAT | ||
|
|
5 | 15331-00 | NUT, 3/8-24 JAM | ||
|
|
6 | 15900-00 | NUT, 1/4-20 NYLOCK FLANGE | ||
|
|
7 | 15904-00 | NUT, 5/16-18 NYLOCK FLANGE | ||
|
|
8 | 15915-00 | BOLT, 5/16-18 X 3-1/2 LONG NECK GR5 CRG ZP | ||
|
|
9 | 31993-00 | RETAINER, HANDLEBAR ADJUSTMENT | ||
|
|
10 | 32004-00 | SPRING, RETAINER COMPRESSION | ||
|
|
11 | 32045-00 | GUIDE, RECOIL ROPE | ||
|
|
12 | 32475-00 | KNOB, 5/16-18 FEEM TEE | ||
|
|
13 | 33826-00 | TUBING, HEAT SHRINK 1/2" X 1-1/4" 2:1 RATIO | ||
|
|
14 | 73518-12 | ASSEMBLY, BAIL HW TRIMMERS | ||
|
|
15 | 73775-12 | BRACKET, TRIMMER KILL SWITCH | ||
|
|
16 | 73831-00 | ASSEMBLY, UPPER HANDLE BAR WITH GRIPS (INCLUDES | ||
|
|
17 | 32022-00 | PAD, FOAM HANDLE BAR | ||
|
|
17320 | 17320 | STRAP, 11 IN BLACK TIE (NOT SHOWN) | ||
|
|
33429-00 | 33429-00 | HARNESS, BRIGGS TRIMMER KILL SWITCH (NOT SHOWN) |
