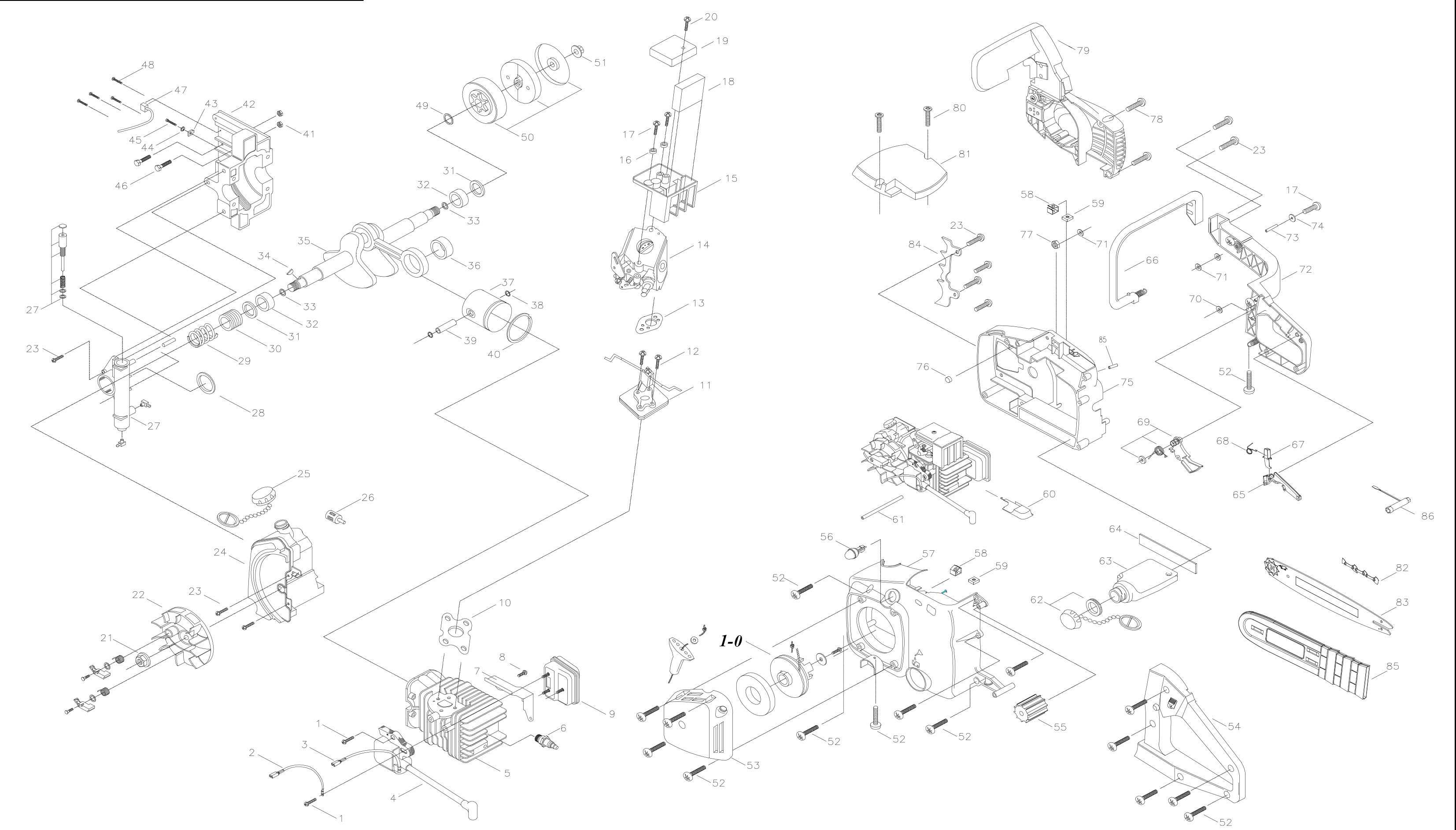

1 ПОРШЕНЬ - ЦИЛИНДР - СВЕЧА - КАРБЮРАТОР - ФИЛЬТР - СЦЕПЛЕНИЕ - ЗВЕЗДОЧКА - МАСЛОНАСОС БЕНЗОПИЛА CHAMPION 138 | ремонт | в СПБ
| Ссылка № | Артикул | Наименование | Цена | ||
|
1-0 | 9137-310001 | Барабан стартера 138 | 331 руб. | |
|
1 | 9SKKBY10/24-0.75 | SCREW | ||
|
|
2 | 9010-310101 | WIRE,STOP | ||
|
|
3 | 9010-310102 | WIRE,GROUND | ||
|
|
4 | 9288-310001 | IGNITION ASS'Y | ||
|
|
5 | 9064-310004F | CYLINDER | ||
|
|
6 | 9111-310002-CH | SPARK PLUG | ||
|
|
7 | 9082-310101 | BAFFLE,AIR | ||
|
|
8 | 9SGKBY10/24-0.625 | SCREW,BAFFLE | ||
|
|
9 | 9228-310112 | BAFFLE,OUTER ASS'Y | ||
|
|
10 | 9082-310001 | GASKET,INSULATOR | ||
|
|
11 | 9228-310133 | INSULATOR,CARBURETOR ASS'Y | ||
|
|
12 | 9SKKBY10/24-1 | SCREW | ||
|
|
13 | 9014-310006 | GASKET,CARBURETOR | ||
|
|
14 | 9287-310001 | Карбюратор | 2 806 руб. | |
|
|
15 | 9081-310001 | BOX,AIR FILTER | ||
|
|
16 | 9124-310208 | SPACER | ||
|
|
17 | 9SKKBY10/24-2 | SCREW | ||
|
|
18 | 9252-310004 | FILTER,AIR | ||
|
|
19 | 9017-310004 | SHIELD,CARBURETOR | ||
|
|
20 | 9SGKBY10/14-0.625 | SCREW | ||
|
|
21 | 9NAB-5/16-24 | NUT,CLUTCH | ||
|
|
22 | 9228-310110 | FLYWHEEL ASS'Y | ||
|
|
23 | 9SKKBY10/24-0.62 | SCREW | ||
|
|
24 | 9228-310001 | TANK ASS'Y | ||
|
|
25 | 9228-310125 | CAP OIL ASS'Y | ||
|
|
26 | 9182-310101 | PICKUP-FUEL | ||
|
|
27 | 9228-310106 | OIL PUMP BODY ASS'Y | 650 руб. | |
|
|
28 | 9252-310003 | SEAL,FOAM,OIL PUMP | ||
|
|
29 | 9024-310004 | SPRING,COMP | ||
|
|
30 | 9073-310001 | Червяк привода маслонасоса 138 | 100 руб. | |
|
|
31 | 9157-310101 | SEAL, C'SHOFT OIL | ||
|
|
32 | 9DB-SCH87 | BEARING | ||
|
|
33 | 9WFB-14.2-25.3 | WASHER | ||
|
|
34 | 9221-310001 | KEY,FLYWHEEL | ||
|
|
35 | 9200-310001 | C/SHAFT/CAN ROD SUB ASS'Y | ||
|
|
36 | 9155-310002 | BEARING,NEEDLE | ||
|
|
37 | 9290-310004 | PISTO,MACH | ||
|
|
38 | 9CB-08-0.6 | RING,SNAP INT | ||
|
|
39 | 9PA-9.51-29.67 | PIN,PISTON | ||
|
|
40 | 9291-310001 | RING, PISTON | ||
|
|
41 | 9NHC-1/4 | NUT | ||
|
|
42 | 9072-310002F | C CASE | ||
|
|
43 | 9035-310101 | NUT, BAR ADJUSTING | ||
|
|
44 | 9043-310002 | E RING, RETAINING | ||
|
|
45 | 9191-310001 | REVIES SCREW | ||
|
|
46 | 9214-310001 | BAR BOLT | ||
|
|
48 | 9SFEB-12/24-1 | SCREW | ||
|
|
49 | 6014-633501 | WAHSER,SPROCKET | ||
|
|
50 | 1000002 | Звёздочка ведущая 3/8"-6 (McC 110,130,140, Champion 138) (аналог 29888) монолит | 900 руб. | |
|
|
51 | 9NHC-5/16-24 | NUT | ||
|
|
52 | 9SKKBY8/16-0.75 | SCREW | ||
|
|
53 | 9228-31A102 | ROPE,STARTER ASS'Y | ||
|
|
54 | 9228-3101T1 | HANDLE,LEFT-REAR ASS'Y | ||
|
|
55 | 9027-310101 | ISOLATOR,RUBBER | ||
|
|
56 | 9142-310002 | PRIMER,REMOTE | ||
|
|
57 | 9038-310102 | HOUSING (L) | ||
|
|
58 | 9014-310001 | RETAINER,NUT | ||
|
|
59 | 9NDC-10/24 | NUT,SQUARE | ||
|
|
60 | 9114-310001 | ROD,CHOKE | ||
|
|
61 | 9129-310002 | HOSE,PRIMER | ||
|
|
62 | 9228-310126 | OIL CAP ASS'Y | ||
|
|
63 | 9228-310002 | OIL TANK ASS'Y | ||
|
|
64 | 9014-310004 | SPACER,OIL TANK | ||
|
|
65 | 9028-IK0101 | Предохранитель курга гпзп 138 | 650 руб. | |
|
|
66 | 9228-310153 | HANDLE ASS'Y ,FRONT | ||
|
|
67 | 9056-IK0101 | BUTTON, THROTTLE-LOCK | ||
|
|
68 | 9024-IK0101 | SPRING, THROTTLE-LOCK | ||
|
|
69 | 9228-310043 | TRIGGER ASS'Y | ||
|
|
70 | 9WFB-4.9-17 | WASHER | ||
|
|
71 | 9WFB-5.64-12 | WASHER | ||
|
|
72 | 9228-3101T2 | HANDLE RIGHT REAR ASS'Y | ||
|
|
73 | 9124-310101 | SPACER | ||
|
|
74 | 9WFB-5.1-22 | WASHER | ||
|
|
75 | 9228-310136 | HOUSING,RIGHT | ||
|
|
76 | 9252-310002 | FILTER, FOAM | ||
|
|
77 | 9NGB-10/24-50 | NUT,HX LOCK | ||
|
|
78 | 9SKKBY-8/16-1 | SCREW | ||
|
|
79 | 9228-31A101 | CHAIN BRAKE ASS'Y | ||
|
|
80 | 9214-310101 | SCREW | ||
|
|
81 | 9067-310001 | COVER,AIR FILTER | ||
|
|
82 | 6220-210816 | CHAIN | ||
|
|
83 | 9040-3101130F | BAR | ||
|
|
84 | 9227-310101 | SPIKED BUMPER | ||
|
|
85 | 6101-210506 | BAR COVER | ||
|
|
86 | 6042-310101 | WRENCH |
