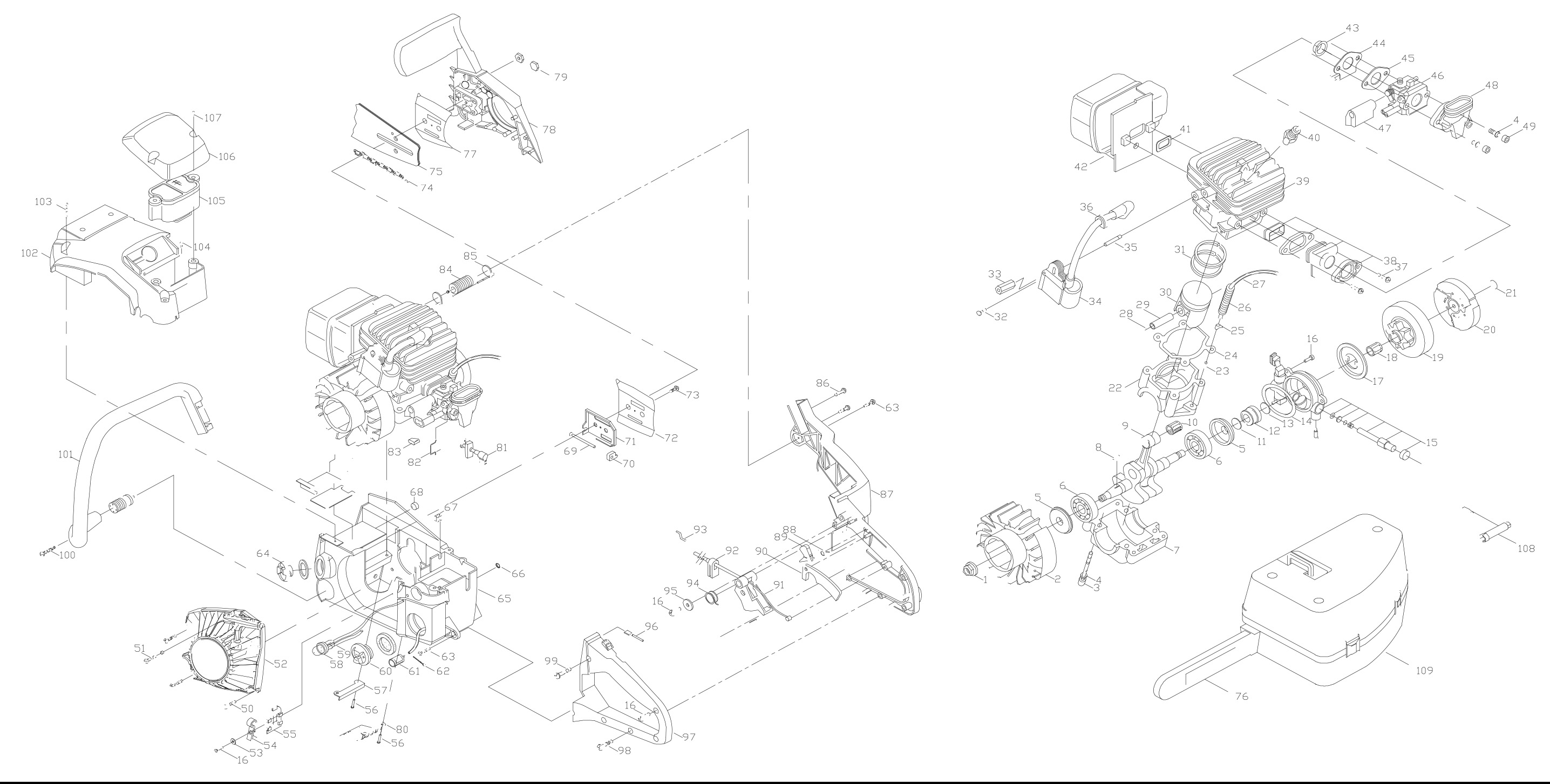

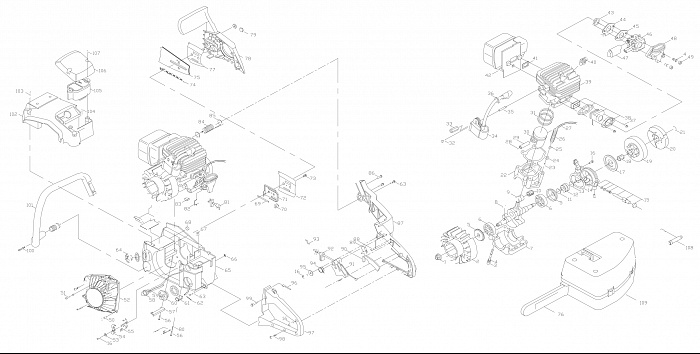

1 ПОРШЕНЬ - ЦИЛИНДР - СВЕЧА - КАРБЮРАТОР - ФИЛЬТР - СЦЕПЛЕНИЕ - ЗВЕЗДОЧКА - МАСЛОНАСОС БЕНЗОПИЛА CHAMPION 255 | ремонт | в СПБ
| Ссылка № | Артикул | Наименование | Цена | ||
|
1 | 9NAB-5/16-24 | NUT | ||
|
|
2 | 9228-31B206 | FLYWHEEL | ||
|
|
3 | 9SREB-10/24-2.75 | SCREW | ||
|
|
4 | 9WFB-0.2 | WASHER | ||
|
|
5 | 9157-310201 | SEAL | ||
|
|
6 | 04035303008 | BEARING | 193 руб. | |
|
|
7 | 9072-310201F? | CRANKCASE LOWER | ||
|
|
8 | 9221-310001 | KEY | ||
|
|
9 | 9228-310203A | C'SHAFT/C'ROD ASS'Y | ||
|
|
10 | 9155-310201 | BEARING | ||
|
|
11 | 6014-M96A01 | WASHER | ||
|
|
12 | 9073-310201 | GEAR, WORM | ||
|
|
13 | 9WFN-0.4 | WASHER | ||
|
|
14 | 9076-310201 | O RING | ||
|
|
15 | 9228-310208 | PUMP ASS'Y | ||
|
|
16 | 9SKKBY8/16-0.5 | SCREW | ||
|
|
17 | 9WDZ-0.722 | WASHER | ||
|
|
18 | 9155-310203 | BEARING | ||
|
|
19 | 9228-310299 | DRUM SPRKT ASS'Y | ||
|
|
20 | 9228-310210 | CLUTCH ASS'Y | ||
|
|
21 | 9NHC-09 | NUT | ||
|
|
22 | 9072-310202F? | CRANKCASE UPPER | ||
|
|
23 | 9124-310201 | FITTING, PULSE LINE | ||
|
|
24 | 9014-310212 | GASKET | ||
|
|
25 | 9036-310201 | CLAMP, WIRE HOSE | ||
|
|
26 | 9059-310201 | CONDUIT, FLEX | ||
|
|
27 | 9129-310004 | HOSE | ||
|
|
28 | 9CA-0.46 | RING | ||
|
|
29 | 9PC-10-32.5 | PIN | ||
|
|
30 | AO9290-310201-ZA999 | PISTON& PISTON RING ASS'Y | ||
|
|
32 | 9SKKBY10/24-0.75 | SCREW | ||
|
|
33 | 9124-310205 | SPACER | ||
|
|
34 | 9288-310201-CH | IGNITION ASS'Y | ||
|
|
35 | 9191-310201 | STUD | ||
|
|
36 | 9012-330301 | GROMMET | ||
|
|
37 | 9SKKBY10/24-0.62 | SCREW | ||
|
|
38 | 9228-310234 | BOOT ASS'Y | ||
|
|
39 | 9292-310201F? | CYLINDER | ||
|
|
40 | 9295-31C201 | SPARK PLUG | ||
|
|
41 | 9014-310208 | WASHER | ||
|
|
42 | 9228-3102Y4 | MUFFLER BODY ASS'Y | ||
|
|
43 | 9131-310203 | EYELET | ||
|
|
44 | 9102-310202 | PLATE | ||
|
|
45 | 9014-310202 | GASKET | ||
|
|
46 | 9287-310201 | CARB | ||
|
|
47 | 9124-310203 | BOOT | ||
|
|
48 | 9228-310233 | BOOT ASS'Y | ||
|
|
49 | 9SREB-10/24-1.625 | SCREW | ||
|
|
50 | 9SKKBY10/14-0.625 | SCREW | ||
|
|
51 | 9SKKBY10/24-0.5 | SCREW | ||
|
|
52 | 9228-31F203 | STARTER ASS'Y | ||
|
|
53 | 9WFZ-0.18 | WASHER | ||
|
|
54 | 9223-310201 | STRING NUT | ||
|
|
55 | 9183-310202 | SCREEN | ||
|
|
56 | 9SKKBY10/24-1 | SCREW | ||
|
|
57 | 9043-310201 | PLATE | ||
|
|
58 | 9142-310002 | PRIMER, REMOTE | ||
|
|
59 | 9129-310214 | HOSE | ||
|
|
60 | 9228-310206 | CAP, FUEL | ||
|
|
61 | 9182-310503 | FILTER, FUEL | ||
|
|
62 | 6032-150-02 | LIGATE TAPE | ||
|
|
63 | 9SKKZY10/14-01 | SCREW | ||
|
|
64 | 9228-310207 | CAP, OIL | ||
|
|
65 | 9228-310205 | FUEL/OIL TANK ASS'Y | ||
|
|
66 | 9024-310211 | SPRING | ||
|
|
67 | 9013-310201 | PLUG | ||
|
|
68 | 9252-310002 | FILTER | ||
|
|
69 | 9214-310201 | SCREW | ||
|
|
70 | 9035-310201 | NUT | ||
|
|
71 | 9043-310203 | PLATE, BAR | ||
|
|
72 | 9043-310202 | PLATE, FLANGE | ||
|
|
73 | 9SKKBY6/19-0.375 | SCREW | ||
|
|
74 | 9220-31C203 | CHAIN | ||
|
|
75 | 9040-31C206F | BAR | ||
|
|
76 | 9101-310203 | BAR COVER | ||
|
|
77 | 9082-310204 | PLATE | ||
|
|
78 | 9228-310286 | CHAIN BRAKE ASS'Y | ||
|
|
79 | 9NAZ-5/16-18 | NUT | ||
|
|
80 | 9043-310205 | PLATE | ||
|
|
81 | 9228-310230 | CHOKE ASS'Y | ||
|
|
82 | 9114-310202 | ROD, CHOKE | ||
|
|
83 | 9013-310202 | PLUG | ||
|
|
84 | 9228-310213 | ISOLATOR ASS'Y | ||
|
|
85 | 9228-310214 | CABLE ASS'Y | ||
|
|
86 | 9SGKBY10/24-0.5 | SCREW | ||
|
|
87 | 9228-310239 | FRAME ASS'Y, REAR | ||
|
|
88 | 9024-310207 | SPRING | ||
|
|
89 | 9072-310203 | LATCH, HIGH IDLE | ||
|
|
90 | 9028-310201 | RELEASE. TRIGGER | ||
|
|
91 | 9028-310202 | TRIGGER | ||
|
|
92 | 9124-310209 | GROMMET | ||
|
|
93 | 9010-310201 | CABLE | ||
|
|
94 | 9024-310206 | SPRING | ||
|
|
95 | 9WFB-4.9-17 | WASHER | ||
|
|
96 | 9010-310203 | WIRE | ||
|
|
97 | 9228-31C205 | COVER ASS'Y, HANDLE | ||
|
|
98 | 9SKKBY8/16-0.625 | SCREW | ||
|
|
99 | 9SKKBY-8/16-1 | SCREW | ||
|
|
100 | 9SJKB-12/14-1.5 | SCREW | ||
|
|
101 | 9228-31B202 | HANDLE ASS'Y | ||
|
|
102 | 9228-310216 | COVER ASS'Y | ||
|
|
103 | 9SKKBY10/14-02 | SCREW | ||
|
|
104 | 9SKKBY10/14-0.68 | SCREW | ||
|
|
105 | 9228-310204 | AIR CLEANER ASS'Y | ||
|
|
106 | 9067-310202 | COVER | ||
|
|
107 | 9214-310101 | SCREW | ||
|
|
108 | 9042-310201 | WRENCH |
