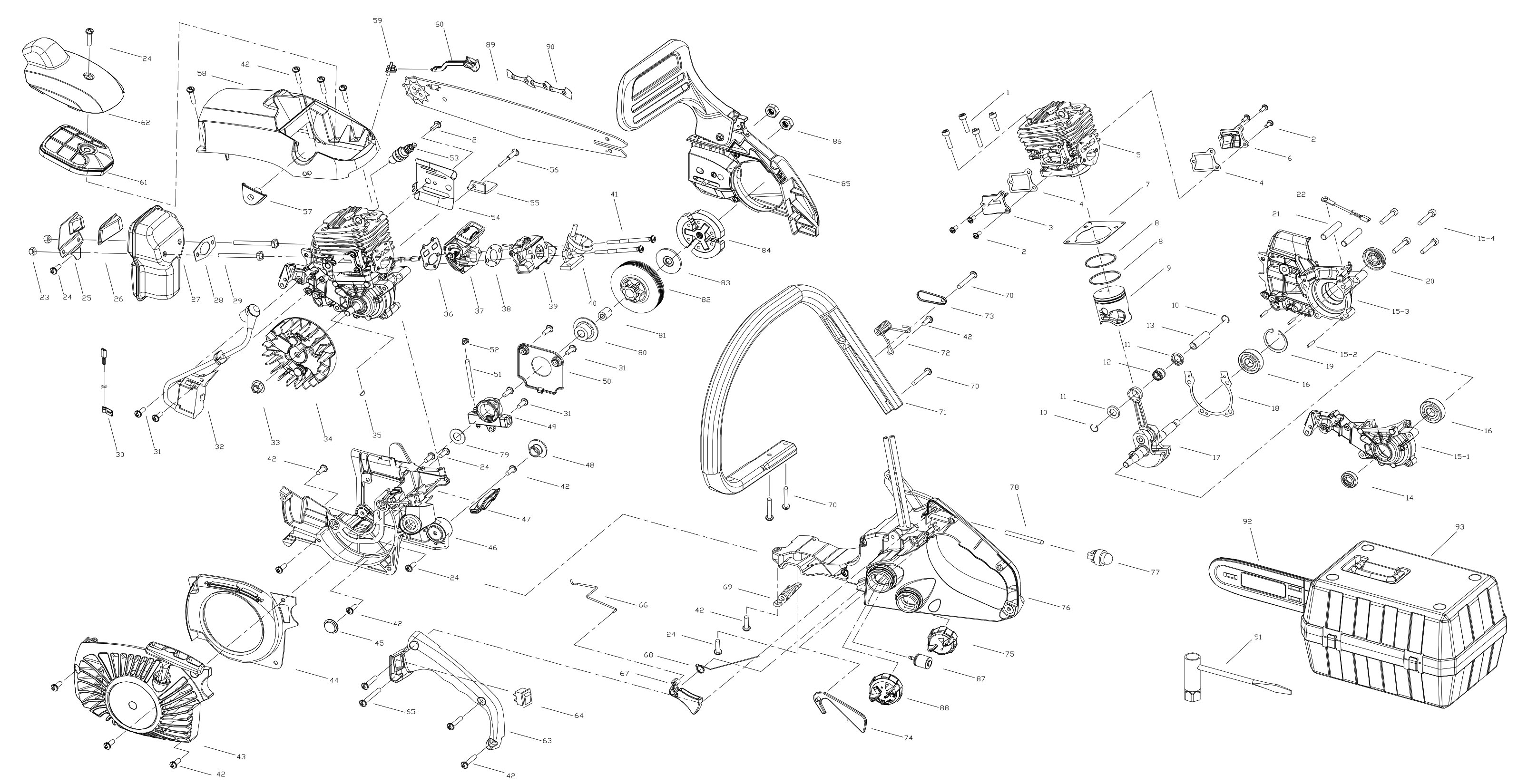

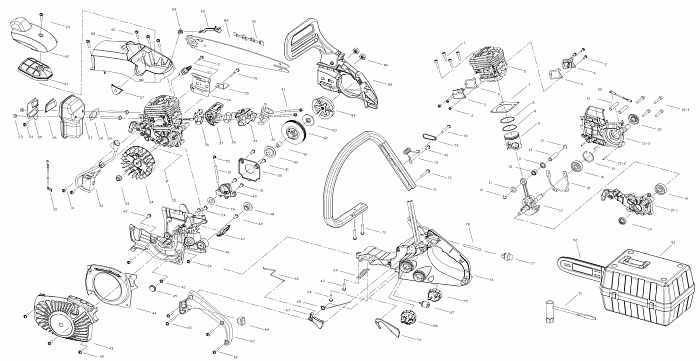

1 ПОРШЕНЬ - ЦИЛИНДР - СВЕЧА - КАРБЮРАТОР - ФИЛЬТР - СЦЕПЛЕНИЕ - ЗВЕЗДОЧКА - МАСЛОНАСОС БЕНЗОПИЛА CHAMPION 340 | ремонт | в СПБ
| Ссылка № | Артикул | Наименование | Цена | ||
|
1 | 9SGEB-05-20 | SCREW | ||
|
|
2 | 9SKKB-04-10 | SCREW | ||
|
|
3 | 9067-310802 | CAP | ||
|
|
4 | 9014-310803 | GASKET | ||
|
|
5 | 9292-310801F? | CYLINDER | ||
|
|
6 | 9067-310801 | CAP | ||
|
|
7 | 9014-310801 | GASKET | ||
|
|
8 | 9189-310801 | PISTON RING | ||
|
|
9 | 9290-310801 | PISTON | ||
|
|
10 | 9CA-10.3 | RING | ||
|
|
11 | 9131-310801 | WASHER | ||
|
|
12 | 9NR-K101411 | ROLLER | ||
|
|
13 | 9PC-10-35 | PIN, PISTON | ||
|
|
14 | 9157-332101 | SEAL | ||
|
|
15 | 9228-310819? | CLY CASE ASS'Y | ||
|
|
15-1 | 9072-310802F | CLY CASE, LEFT | ||
|
|
15-2 | 9PA-03-08S | PIN | ||
|
|
15-3 | 9072-310801F | CLY CASE, RIGHT | ||
|
|
15-4 | 9SKKB-05-27 | SCREW | ||
|
|
16 | 03090010034 | BEARING | 269 руб. | |
|
|
17 | 9228-310801 | CRANK/ROD ASS'Y | ||
|
|
18 | 9014-310802 | GASKET | ||
|
|
19 | 9CB-32 | RING | ||
|
|
20 | 9157-310801 | SEAL | ||
|
|
21 | 9191-310802 | SCREW | ||
|
|
22 | 9010-310801 | WIRE | ||
|
|
23 | 9NCC-05U | NUT | ||
|
|
24 | 9SKKB-05-14 | SCREW | ||
|
|
25 | 9014-310810 | COVER, MESH | ||
|
|
26 | 9016-310801 | SPARK ARRESTER | ||
|
|
27 | 9228-310804 | MUFFLER ASS'Y | ||
|
|
28 | 9014-310804 | BAFFLE | ||
|
|
29 | 9191-310803 | SCREW | ||
|
|
30 | 9010-310802 | WIRE | ||
|
|
31 | 9SKKB-04-14 | SCREW | ||
|
|
32 | 9288-310801 | IGNITION ASS'Y | ||
|
|
33 | 9NHC-08 | NUT | ||
|
|
34 | 9169-310801 | FLYWHEEL ASS'Y | ||
|
|
35 | 6221-830301 | WOODRUFF KEY | ||
|
|
36 | 9014-310805 | SPACER | ||
|
|
37 | 9228-310806 | ISOLATER ASS'Y, CARBURETER | ||
|
|
38 | 9014-310006 | SPACER | ||
|
|
39 | 9287-310801 | CARBURETER | ||
|
|
40 | 9072-310803 | AIR GUIDE | ||
|
|
41 | 9SKKB-04-70 | SCREW | ||
|
|
42 | 9SKKBB05-18 | SCREW | ||
|
|
43 | 9228-310803 | STARTER HOUSING ASS'Y | ||
|
|
44 | 9211-310801 | CAP, AIRWAY | ||
|
|
45 | 9105-310802 | CAP, RUBBER | ||
|
|
46 | 9228-310810 | BRACKET ASS'Y | ||
|
|
47 | 9012-310801 | FIXED, PUSH ROD | ||
|
|
48 | 9105-310801 | CAP, RUBBER | ||
|
|
49 | 9228-310805 | PUMP ASS'Y | ||
|
|
50 | 9072-310806 | CAP, ANTI-DUST | ||
|
|
51 | 9129-310804 | PIPE | ||
|
|
52 | 9154-310802 | CONNECTOR | ||
|
|
53 | 9295-310801 | SPARK PLUG | ||
|
|
54 | 9014-310811 | SPACER | ||
|
|
55 | 9263-310801 | CHAIN CATCH | ||
|
|
56 | 9SKKB-05-32 | SCREW | ||
|
|
57 | 9105-310803 | CAP, ADJUST | ||
|
|
58 | 9067-310805 | SHROUD | ||
|
|
59 | 9072-310804 | HOLDER, CHOKE LEVER | ||
|
|
60 | 9114-310801 | LEVER, CHOKE | ||
|
|
61 | 9228-310808 | AIR FILTER ASS.Y | ||
|
|
62 | 9067-310806 | TOP COVER | ||
|
|
65 | 9SKKBB05-35 | SCREW | ||
|
|
66 | 9188-310802 | PUSH ROD | ||
|
|
67 | 9028-310802 | TRIGGER, THROTTLE | ||
|
|
68 | 9024-310801 | SPRING | ||
|
|
69 | 9024-310803 | SPRING | ||
|
|
70 | 9SKKBB05-27 | SCREW | ||
|
|
71 | 9068-310801 | HANDLE, FRONT | ||
|
|
72 | 9024-310802 | SPRING | ||
|
|
73 | 9043-310802 | CAP, SPRING | ||
|
|
74 | 9028-310801 | TRIGGER, RELEASE | ||
|
|
75 | 9228-310809 | OIL CAP ASS'Y | ||
|
|
76 | 9228-310816 | HANDLE ASS'Y (R) | ||
|
|
77 | 9142-310002 | PRIMER | ||
|
|
78 | 9129-310803 | PIPE | ||
|
|
79 | 9WFB-10-18 | SPACER | ||
|
|
80 | 9073-310803 | WORM | ||
|
|
81 | 9NR-K101313 | ROLLER | ||
|
|
82 | 9200-310801 | DRUM ASS'Y | ||
|
|
83 | 9014-310807 | WASHER | ||
|
|
84 | 9228-311004 | CLUTCH ASS'Y | ||
|
|
85 | 9228-310802 | BRAKE KIT ASS'Y | ||
|
|
86 | 9NAZ-5/16-18 | NUT | ||
|
|
87 | 9182-310101 | FUEL FILTER | ||
|
|
88 | 9228-310817 | FUEL CAP ASS'Y | ||
|
|
89 | 9040-310818F | BAR | ||
|
|
90 | 6220-210815 | CHAIN | ||
|
|
91 | 9042-310201 | SPANNER |
