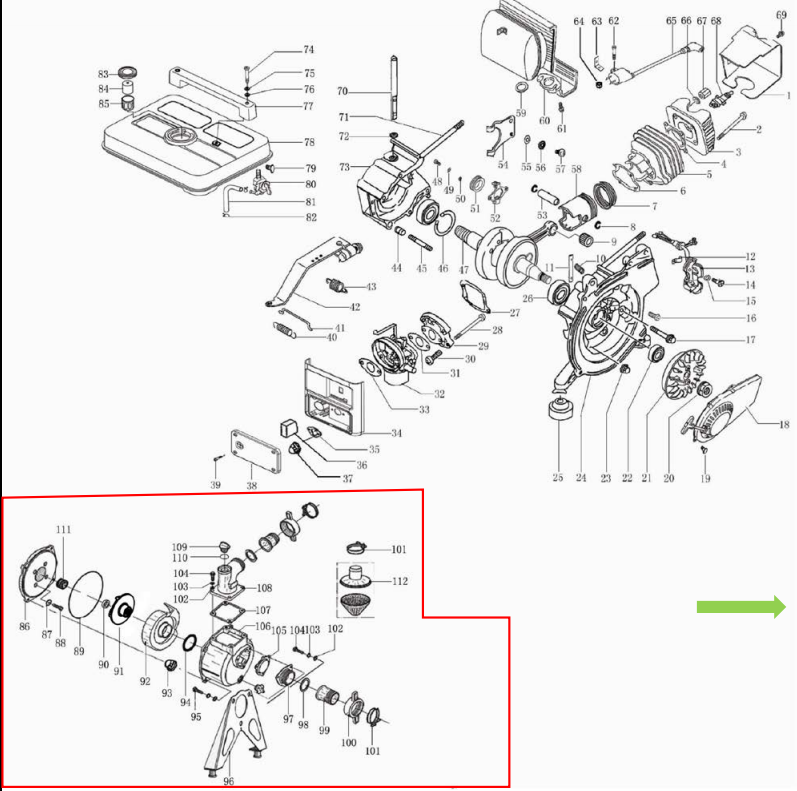

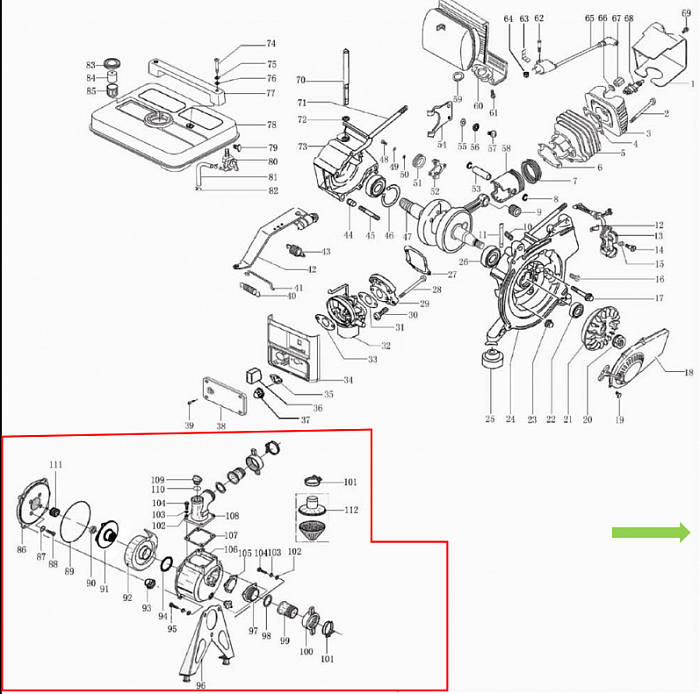

	Ссылка №	Артикул	Наименование	Цена
	1	022010001600	cylinder head cover	238 руб.
	2	511050610501	bolt,flange M6?105
	3	022010001500	cylinder head	836 руб.
	4	022010001200	gasket,cylinder head	99 руб.
	5	3058000006001	cylinder	1 344 руб.
	6	022010001400	gasket,cylinder	108 руб.
	7	022010001100	piston ring set	199 руб.
	7	02201001000	piston ring set
	8	022010000700	circlip	82 руб.
	9	022010004800	roller bearing	187 руб.
	10	022010002400	spring,compression
	11	022010002300	supporting plate
	12	022010001800	clamp
	13	022010001700	integrative portfire	871 руб.
	14	515010601603	screw M6?16
	15	513020600002	spring washer ?6
	16	515060604000	screw M6?40
	17	511050604500	bolt,flange
	18	1500014	recoil starter assembly	612 руб.
	19	511050601201	bolt M6?12
	20	512101000000	nut ,crankshaft M10
	21	022010300002	flywheel	1 161 руб.
	22	3037010001004	oil seal 20?30?7	59 руб.
	23	512040600002	nut M6
	24	022010000200	crankcase,front	1 637 руб.
	25	022010003400	absorber	143 руб.
	26	521010010201	bearing 6004	331 руб.
	27	022010001900	valve base gasket	91 руб.
	28	516030606002	stub M6?60
	29	022010500000	intake reed comp
	30	511050602002	bolt,flange M6?20
	31	022010002000	intake gasket	88 руб.
	32	95001015	carburetor assembly	1 102 руб.
	33	022010002100	carburetor?plate B
	34	032010500000	control panel assembly	783 руб.
	35	022010002200	carburetor?plate A
	36	032010000400	Air filter	245 руб.
	37	512040600002	nut M6
	38	032010000500	control panel cover
	39	515060501500	Screw M5*15
	40	022010002600	spring,tension	82 руб.
	41	022010002500	rod,link	91 руб.
	42	022010000500	governor arm
	43	022010002700	spring,governor	242 руб.
	44	514011001400	pin 10?7?14
	45	516030605004	stud M6?50
	46	518014200001	circlip
	47	032010200000	crankshaft assembly	2 159 руб.
	48	511050601601	bolt M6?16
	49	513020600002	spring washer ?6
	50	513010600002	plain washer ?6
	51	022010000600	collar bush
	52	022010100000	weight comp
	53	022010000800	piston pin	99 руб.
	54	022010000400	governor fork	91 руб.
	55	513010600002	plate washer?6
	56	513020300004	spring washer ?3
	57	515010300800	screw M3?8
	58	022010000901	piston	520 руб.
	59	022010003000	gasket,muffler	108 руб.
	60	032010300000	muffler assembly	1 108 руб.
	61	511130601600	bolt,flange M6?16
	62	511050602002	Bolt M6*20
	63	032010000200	ignition coil assy seat
	64	512040600002	Nut M6
	65	022010003101	ignition coil assy	586 руб.
	66	513010600002	washer,plate ?6
	67	512060601801	nut M6	40 руб.
	68	022010003300	spark plug
	69	511050601201	bolt,flange M6?12
	70	022010000300	governor shaft
	71	516030610005	stud AM6?110
	72	522010100101	oil seal 6?12?4	153 руб.
	73	032010000100	crankcase,rear	1 880 руб.
	74	515060603002	screw M6?30
	75	513020600002	washer,spring ?6
	76	513010600002	washer ?6
	77	022010003801	handle	238 руб.
	78	032010000307	fuel tank comp	2 172 руб.
	79	511050601201	Bolt M6*16
	80	1500019	fuel tank cock assy	208 руб.
	81	029019900100	fuel pipe	289 руб.
	82	029019900401	pipe clip
	83	029019901101	cap assy	232 руб.
	84	022010004100	fuel cup
	85	029019900602	strainer	108 руб.
	86	039010102400	Pump cover	3 094 руб.
	87	513010800099	rubber washer
	88	511050804001	Inner hex bolt M8x60
	89	3037010002022	O ring	231 руб.
	90	3050002001801	porcelain seal	669 руб.
	91	039010102500	water pump impeller	1 057 руб.
	92	039010102600	volute casing	2 004 руб.
	93	512040800001	nut M8
	94	039010100900	O ring	364 руб.
	95	511050803503	flange bolt M8X35
	96	032010100000	Pump surpport
	97	039010101700	inlet flange	716 руб.
	98	039010102000	O ring	145 руб.
	99	039010102100	pipe joint	253 руб.
	100	039010102200	joint grip	505 руб.
	101	039010102300	Rear housing	226 руб.
	102	513010800002	washer?8
	103	513020800002	spring washer ?8
	104	511050802501	bolt M8X25
	105	039010101600	check valve	566 руб.
	106	039010101000	housing of pump	3 685 руб.
	107	039010101800	rubber washer	289 руб.
	108	039010101900	outlet flange	931 руб.
	109	660240001-0001	plug packing	91 руб.
	110	039090101000	O ring	177 руб.
	111	3050002001801	Mechanical seal	669 руб.
	112	039010130000	filter net	664 руб.
