каталог запчастей | 2 ДЕТАЛИ УПРАВЛЕНИЯ |СНЕГОУБОРЩИК CHAMPION ST1074BS |Запчасти по России

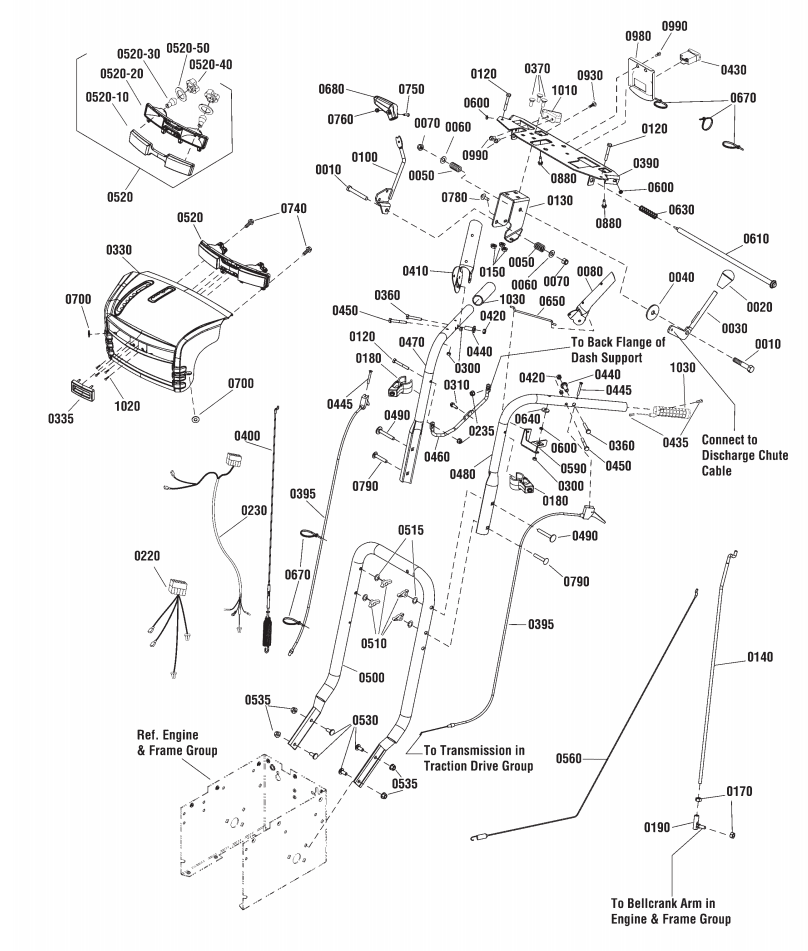

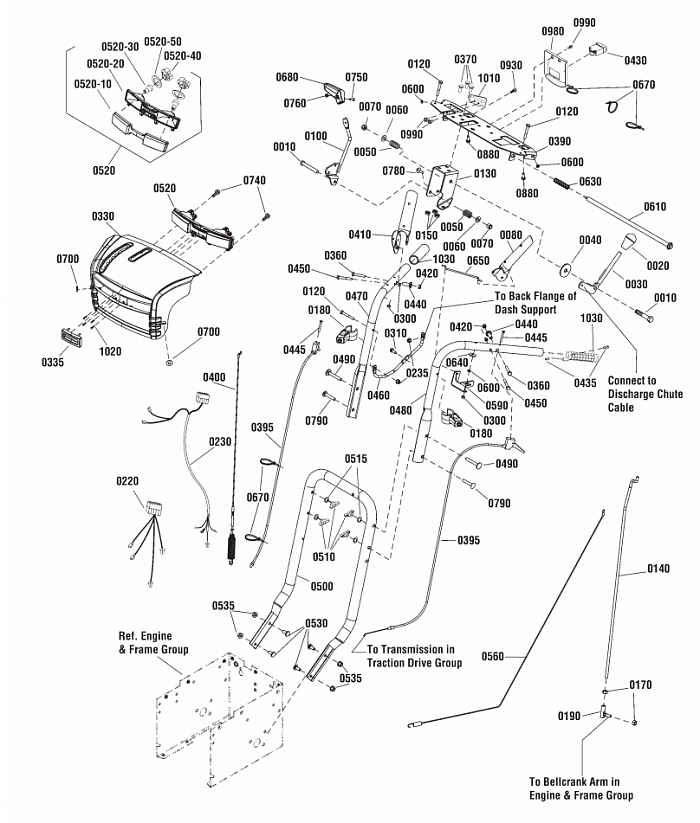

2 ДЕТАЛИ УПРАВЛЕНИЯ |СНЕГОУБОРЩИК CHAMPION ST1074BS |Запчасти по России | СПБ

Распечатать

Ссылка №	Артикул	Наименование	Цена
515	703587	WASHER, Internal Tooth Lock, 5/16”	762 руб.
520	1756613YP	LIGHT ASSEMBLY, LED (Incl. Ref. No. 0520-10, 0520-20, 0520-30, 0520-40 & 0520-	13 559 руб.
0520-10	1754421YP	LENS, Light, P19 (Included with Ref. No. 0520)
0520-20	1754420YP	LIGHT, Bezel, P19 (Included with Ref. No. 0520)
0520-30	-----	* BULB, Light, 12VAC, LED (Included with Ref. No. 0520)
0520-40	1736180YP	SOCKET & GASKET ASSEMBLY, Headlight (Included with Ref. No. 0520)	1 358 руб.
0520-50	1736179YP	GASKET, Single, Twin Light (Included with Ref. No. 0520)
530	1737687YP	BOLT, Carriage, 5/16-18 x 3/4	745 руб.
535	703222	NUT, Hex, KEPS, 5/16-18	857 руб.
560	1737511YP	CABLE, Traction Drive	1 548 руб.
590	1733505BMYP	BRKT, Pivot, Free Hand	1 262 руб.
600	703124	SPACER, Powdered Metal	818 руб.
610	1736363YP	ROD & SPRING ASSEMBLY	4 489 руб.
630	2108360SM	SPRING, Compression	1 048 руб.
640	703229	WASHER, 0.261ID x 0.84OD x 0.12	398 руб.
650	1736360YP	ROD, Hold Down, 5-1/2"	860 руб.
670	703586	TIE, Self Locking	838 руб.
680	1733192SM	KNOB, Slot Speed	918 руб.
700	703332	WASHER, 1/4	762 руб.
740	703944	SCREW, Hex Washer Head, #10-16 x 0.375	818 руб.
750	1960589SM	SCREW, Round Head Phillips, #10-24 x 3/4	818 руб.
760	703412	NUT, Nylock, 10 x 24	762 руб.
780	703466	SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4	818 руб.
790	703059	BOLT, Conical, 5/16-18 x 2	838 руб.
880	7091081SM	SCREW, Hex Washer, Self Tap, 1/4-15 x 3/4	933 руб.
930	703101	BOLT, Carriage, 1/4-20 x 3/4	762 руб.
980	1739861BZYP	BRACKET, Switch	1 205 руб.
990	1960556SM	SCREW, Pan Head, Torx, 1/4-20 x 3/4, Taptite	933 руб.
1010	1739483AYP	POD, Chute Rotation, RH	1 548 руб.
1020	1753218YP	SCREW, Torx, 8/18 x 1/2	799 руб.
1030	1723965SM	HAND GRIP, Heated 1" Dia. x 5-1/4 Lg	10 312 руб.
