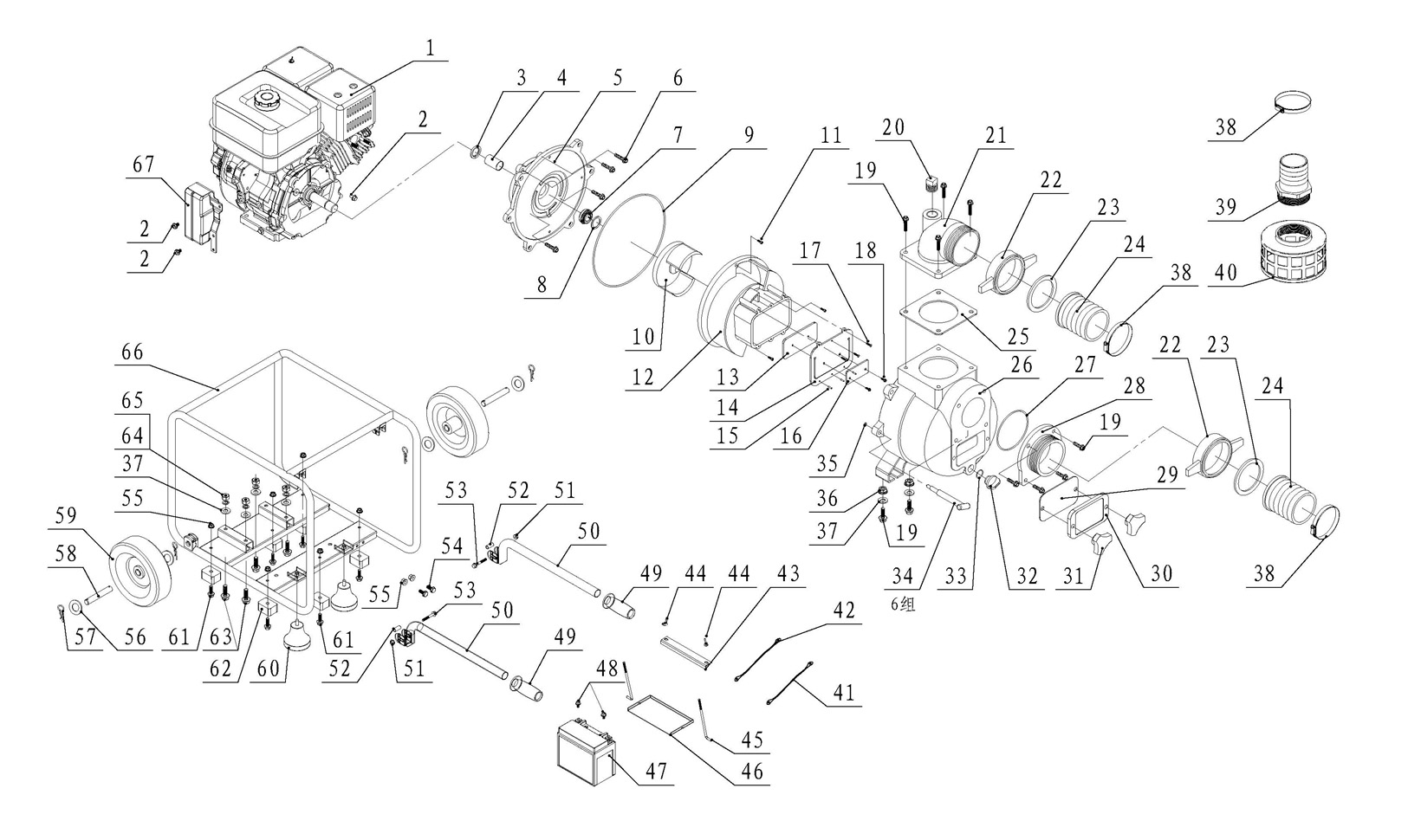

1 КОРПУС - УЛИТКА -САЛЬНИК - КРЫЛЬЧАТКА МОТОПОМПА CHAMPION GTP101E | ремонт | в СПБ
| Ссылка № | Артикул | Наименование | Цена | ||
|
2 | 511050801201 | flange bolt M8X12 | ||
|
|
3 | 039120102700 | washer | ||
|
|
4 | 039120102800 | seal sleeve | 1 473 руб. | |
|
|
5 | 039120100100 | housing of pump | 12 132 руб. | |
|
|
6 | 511051002502 | flange bolt M10*25*1.25 | ||
|
|
7 | 039120100200N | Seal | 3 711 руб. | |
|
|
8 | 039120102900 | washer ?25 | 91 руб. | |
|
|
9 | 039120100300 | O ring | 444 руб. | |
|
|
10 | 039120100400 | water pump impeller | 3 020 руб. | |
|
|
11 | 511070602009 | bolt M6*20 | ||
|
|
12 | 039120100500 | volute casing | 8 091 руб. | |
|
|
13 | 039120100600 | back clamp | ||
|
|
14 | 039120100700 | check valve | 433 руб. | |
|
|
15 | 039120100800 | pin | ||
|
|
16 | 039120100900 | front clamp | ||
|
|
17 | 515020401003 | bolt M4*10 | ||
|
|
18 | 511010601503 | flange bolt M6X15 | ||
|
|
19 | 511051003001 | flange bolt M10*30*1.5 | ||
|
|
20 | 039120101000 | plug packing | 320 руб. | |
|
|
21 | 039120101101 | Outlet (BSP thread) | 3 699 руб. | |
|
|
22 | 039030102203 | joint grip | 1 108 руб. | |
|
|
23 | 039040102000 | rubber washer | 187 руб. | |
|
|
24 | 039040102100 | pipe joint | 1 512 руб. | |
|
|
25 | 039120101500 | gasket | 133 руб. | |
|
|
26 | 039120101600 | Pump cover | 21 260 руб. | |
|
|
27 | 039120101700 | O ring | 409 руб. | |
|
|
28 | 039120101801 | Inlet (BSP thread) | 2 106 руб. | |
|
|
29 | 039120101900 | gasket | 231 руб. | |
|
|
30 | 039120102000 | clean-up cover | 1 008 руб. | |
|
|
31 | 039120102100 | bolt | 434 руб. | |
|
|
32 | 660240001-0001 | plug packing | 91 руб. | |
|
|
33 | 039090101000 | O ring | 177 руб. | |
|
|
34 | 039120102200 | T type bolt | 544 руб. | |
|
|
35 | 039120102300 | O ring | ||
|
|
36 | 512041000000 | flange nut M10 | ||
|
|
37 | 513011000001 | washer ?10 | ||
|
|
38 | 039040102300 | Rear housing | ||
|
|
39 | 039120102500 | connecting pipe | ||
|
|
40 | 039120102600 | weldment | ||
|
|
41 | 029969900208 | battery wire (black) -250mm | ||
|
|
42 | 029969900207 | battery wire (red) -700mm | ||
|
|
43 | 029960900601 | battery platen | ||
|
|
44 | 512020600001 | butterfly nut A - M6 | ||
|
|
45 | 029969900304 | battery hook(L=145) | ||
|
|
46 | 029961000800 | battery bracket assembly | ||
|
|
47 | 029960200100 | battery 12AH | 3 318 руб. | |
|
|
48 | 511050601201 | flange bolt B - M6X12 | ||
|
|
49 | 029050100701 | handle cover | ||
|
|
50 | 029050120001 | handle | ||
|
|
51 | 512070600000 | flange nut M6 | ||
|
|
52 | 029050100601 | rotational pipe | ||
|
|
53 | 511050604501 | flange bolt B - M6X45 | ||
|
|
54 | 511050802501 | flange bolt B - M8X25 | ||
|
|
55 | 512040800001 | flange nut M8 | ||
|
|
56 | 513011600001 | washer ?16 , h=3 | ||
|
|
57 | 029050290004 | axle pin for 6145 | ||
|
|
58 | 029050100410 | axle | 463 руб. | |
|
|
59 | 029970000505 | 8 inch inflation wheel (decentration) | 1 569 руб. | |
|
|
60 | 029050100201 | shock absorber | 383 руб. | |
|
|
61 | 511050802001 | flange bolt B - M8X20 | 83 руб. | |
|
|
62 | 029910100100 | shock absorber | 238 руб. | |
|
|
63 | 511051004001 | flange bolt B - M10X40 | ||
|
|
64 | 513021000000 | spring washer ?10 | ||
|
|
65 | 512011000002 | flange nut M10 | ||
|
|
66 | 032160200000 | frame | ||
|
|
67 | 029990800002 | electric starter box | 3 388 руб. |
