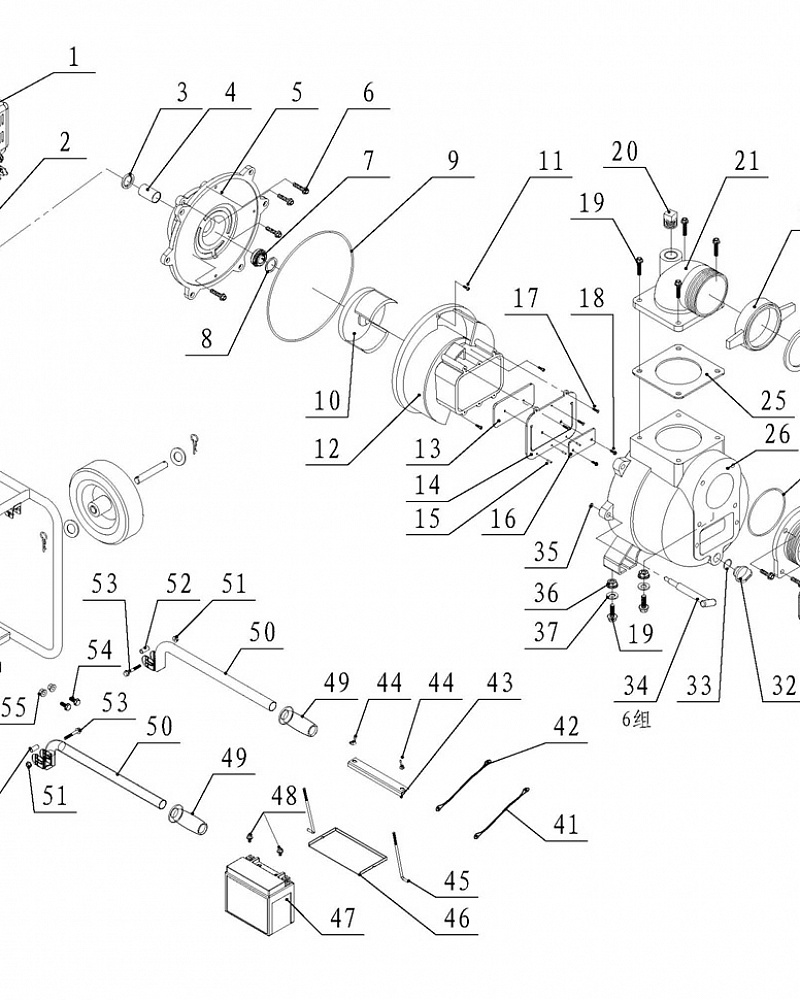

Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена
2	511050801201		flange bolt M8X12
3	039120102700		washer
4	039120102800		seal sleeve
5	039120100100		housing of pump
6	511051002502		flange bolt M10*25*1.25
7	039120100200N		Seal
8	039120102900		washer ?25
9	039120100300		O ring
10	039120100400		water pump impeller
11	511070602009		bolt M6*20
12	039120100500		volute casing
13	039120100600		back clamp
14	039120100700		check valve
15	039120100800		pin
16	039120100900		front clamp
17	515020401003		bolt M4*10
18	511010601503		flange bolt M6X15
19	511051003001		flange bolt M10*30*1.5
20	039120101000		plug packing
21	039120101101		Outlet (BSP thread)
22	039030102203		joint grip
23	039040102000		rubber washer
24	039040102100		pipe joint
25	039120101500		gasket
26	039120101600		Pump cover
27	039120101700		O ring
28	039120101801		Inlet (BSP thread)
29	039120101900		gasket
30	039120102000		clean-up cover
31	039120102100		bolt
32	660240001-0001		plug packing
33	039090101000		O ring
34	039120102200		T type bolt
35	039120102300		O ring
36	512041000000		flange nut M10
37	513011000001		washer ?10
38	039040102300		Rear housing
39	039120102500		connecting pipe
40	039120102600		weldment
41	029969900208		battery wire (black) -250mm
42	029969900207		battery wire (red) -700mm
43	029960900601		battery platen
44	512020600001		butterfly nut A - M6
45	029969900304		battery hook(L=145)
46	029961000800		battery bracket assembly
47	029960200100		battery 12AH
48	511050601201		flange bolt B - M6X12
49	029050100701		handle cover
50	029050120001		handle
51	512070600000		flange nut M6
52	029050100601		rotational pipe
53	511050604501		flange bolt B - M6X45
54	511050802501		flange bolt B - M8X25
55	512040800001		flange nut M8
56	513011600001		washer ?16 , h=3
57	029050290004		axle pin for 6145
58	029050100410		axle
59	029970000505		8 inch inflation wheel (decentration)
60	029050100201		shock absorber
61	511050802001		flange bolt B - M8X20
62	029910100100		shock absorber
63	511051004001		flange bolt B - M10X40
64	513021000000		spring washer ?10
65	512011000002		flange nut M10
66	032160200000		frame
67	029990800002		electric starter box
