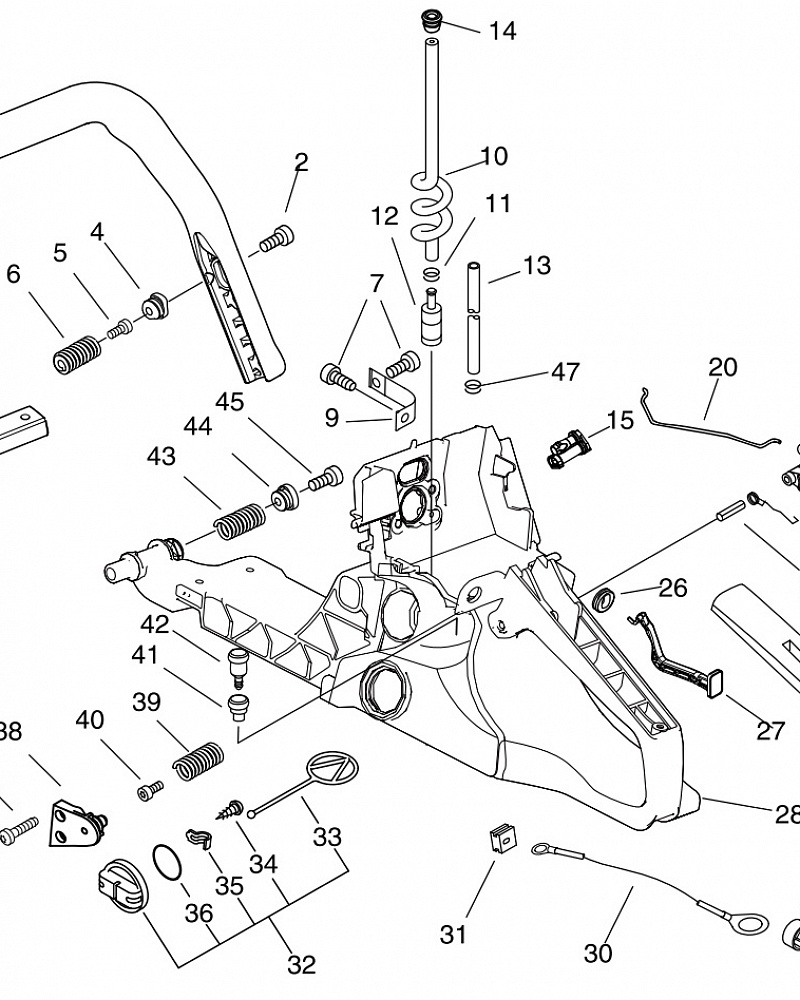

Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена
1	C400001040		HANDLE, FRONT
2	V806000000		BOLT, TORX 6
3	V805000010		BOLT, TORX 5
4	V456000080		HOLDER,SPRING
5	V805000000		BOLT, TORX 5
6	V450000730		SPRING,COMPRESSION
7	V805000000		BOLT, TORX 5
9	C617000361		STOPPER
10	V471003080		PIPE
11	13201309820		CLIP
12	13120519831		STRAINER, FUEL
13	13201202960		PIPE, FUEL
14	13211501461		GROMMET
15	V131000180		GROMMET,NEEDLE
20	C454000470		ROD, THROTTLE
21	17809037930		LOCKOUT, T. CONTROL
22	C450000360		CONTROL, THROTTLE
23	V452000260		SPRING,TORSION
24	90034540025		PIN, SPRING 4*25SUS
25	C411000001		LID,HANDLE
26	V130000030		GROMMET,CHOKE
27	A241000220		KNOB, CHOKE
28	C410001000		HANDLE, REAR
28	C410001001		HANDLE, REAR
29	A440001190		SWITCH, ON OFF
30	V485001101		LEAD
31	15011404920		BUSHING
32	P021016040		CAP,FUER ASSY
33	13105119830		LINK
34	90024603008		SCREW 3*8
35	13105019830		RETAINER, LINK
36	90072020029		O-RING 29
37	V805000010		BOLT, TORX 5
38	V456000090		HOLDER,SPRING
39	V450001630		SPRING,COMPRESSION
40	V805000010		BOLT, TORX 5
41	A359000000		COVER,VENT
42	13130056431		VENT ASSEMBLY, FUEL
43	V450000770		SPRING,COMPRESSION
44	V456000101		HOLDER,SPRING
45	V806000000		BOLT, TORX 6
46	V804000000		BOLT, TORX 4
47	13201326630		CLIP
49	A472000090		CAP
