Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена

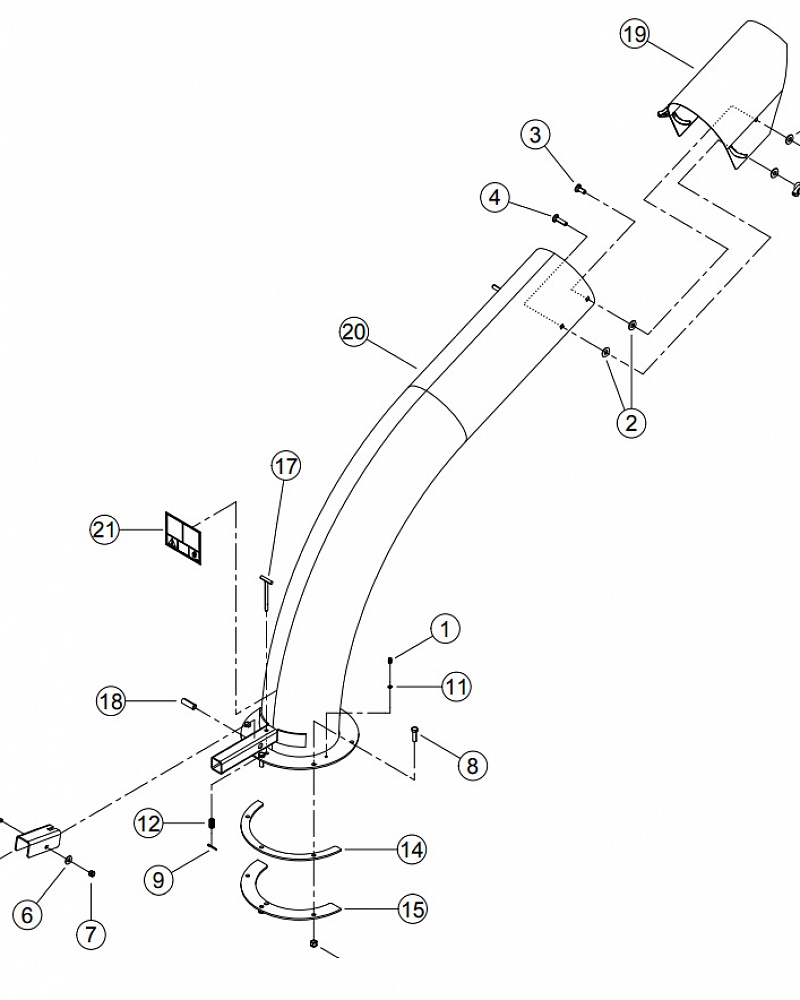

1/13			DISCHARGE CHUTE
1	12275		FITTING, 1/4 SELF-TAP GREASE
2	15031		WASHER, 3/8 FLAT ZP
3	15057		BOLT, 3/8 X 1 CRG GR5 NC ZP
4	15058		BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP
5	15154		BOLT, 5/16 X 2-1/2 HX CAP GR5 ZP
6	15250		WASHER, 5/16 FLAT ZP
7	15356		NUT, 5/16 NE NYLOCK ZP
8	15364		BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP
9	15375		PIN, 1/8 X 1 ZP COTTER
10	15388		NUT, 3/8 NE NYLOCK ZP
11	15584		WASHER, .254 X .400 X .048 FLAT
12	16556		SPRING, LOCK COMPRESSION
13	32110-00		KNOB, 3/8-16 UNC FEMALE TEE
14	71247		RING, DISCHARGE SPACER
15	71248		RING, DISCHARGE CLAMP
16	71252		LEVER, DISCHARGE LOCK
17	71253		WELDMENT, DISCHARGE LOCK PIN
18	71256		TUBE, DISCHARGE LOCK PIVOT
19	71704-12		CAP, 8 IN. DISCHARGE CHUTE
20	77130-00		ASSEMBLY, 8 INCH DISCHARGE, SERVICE PART (INCLUDES ITEM 21)
21	32109-00		DECAL, DISCHARGE DEBRIS & LOCK
