Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена

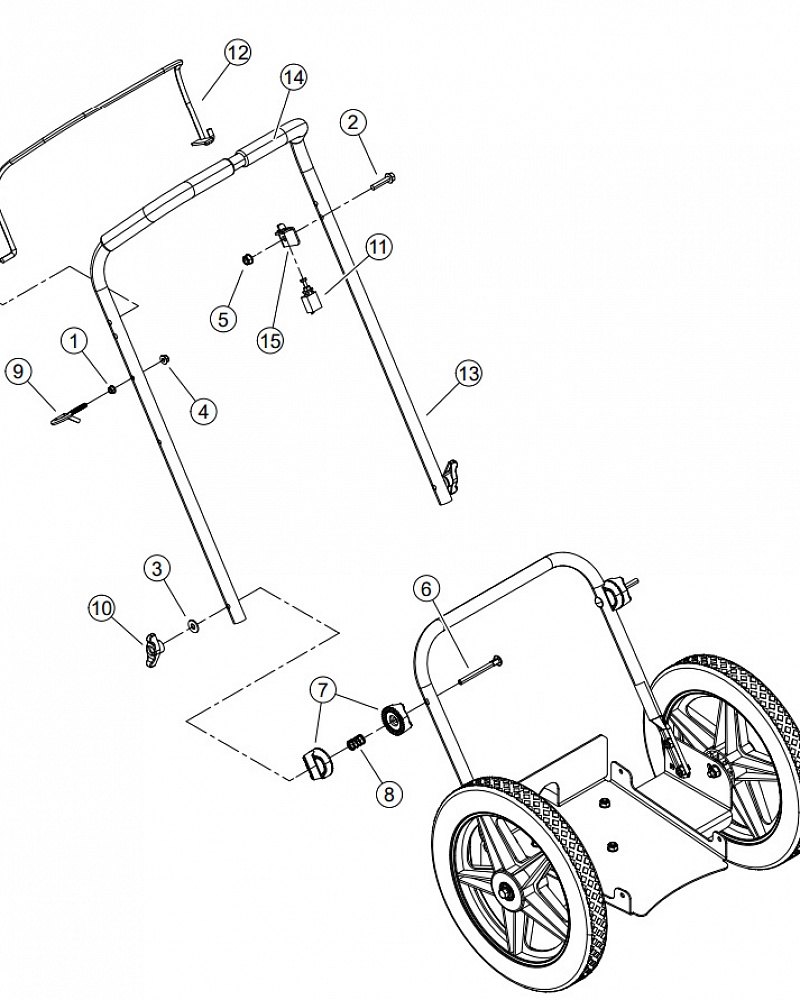

6/19	SN: K03077 - CURRENT		HANDLE BAR
1	15053		NUT, 1/4"-20 SERRATED FLANGE NC ZP
2	15122-00		BOLT, 5/16 X 1-1/2 FLANGE NC
3	15250		WASHER, 5/16 FLAT
4	15900-00		NUT, 1/4-20 NYLOCK-FLANGE
5	15904-00		NUT, 5/16-18 NYLOCK-FLANGE
6	15915-00		BOLT, 5/16-18 X 3-1/2 LONG NECK GR5 CRG ZP
7	31993-00		RETAINER, HANDLE BAR ADJUSTMENT
8	32004-00		SPRING, RETAINER COMPRESSION
9	32045-00		GUIDE, RECOIL ROPE
10	32475-00		KNOB, 5/16-18 FEEM TEE
11	34660-00		SWITCH, ENGINE KILL
12	73518-12		ASSEMBLY, BAIL HW TRIMMERS
13	73831-00		ASSEMBLY, UPPER HANDLE BAR WITH GRIPS (INCLUDES ITEM 14)
14	32022-00		PAD, FOAM HANDLE BAR
15	78088-12		BRACKET, HW KILL SWITCH
17320	17320		STRAP, 11 IN BLACK TIE (NOT SHOWN)
34661-00	34661-00		HARNESS, BRIGGS HW KILL SWITCH (NOT SHOWN)
