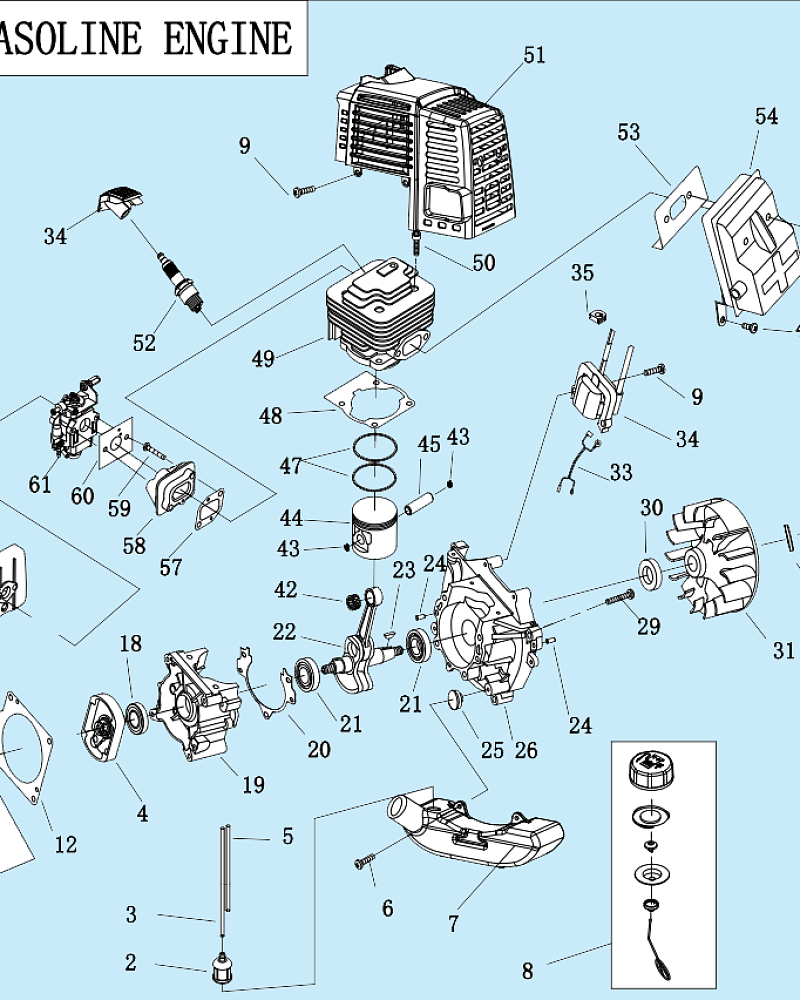

Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена
1	1700005		Стартер в сборе ERGO-START
2	1600003		Фильтр топливный
3	V471002171		Шланг топливный 230 мм — Made in Japan
4	02050100006		Start dial assy
5	V471002171		Шланг топливный 230 мм — Made in Japan
6	03010010062		Screw assy M5 * 16
7	70050030073		tank
8	02110020026		Fuel tank cap assy
9	03020020012		Screw assy M5 * 20
10	02020160432		Fuel tank protection frame
11	02080020087		Fuel tank hanger rubber sleeve
12	02010030018		Starter pad
13	70030040327		Air filter inner cover assy
14	02020161004		Oil shield welding
15	03010010063		Screw assy M5 * 55
16	02090010044		Air filter element
17	70030040107		Air filter housing
18	03100010032		Oil seal 12 * 22 * 7
19	043231130		Rear half crankcase
20	02070010246		Crankcase gasket
21	04035303008		Bearing 6202 / P5
22	02020120134		Crankshaft connecting rod assy
23	951103130		Semicircle key 3 * 5 * 13
24	03060010004		Pin 4 * 10
25	02070020046		Fuel tank pad
26	043231110		Front half crankcase
27	03040020018		Flat washer 8
28	03050010008		Spring pad 8
29	03010010069		Hexagon socket screw set M5 * 30
30	03100010033		Oil seal 15 * 30 * 7
31	043241110		Magneto rotor
32	03030010017		Nut M8 * 1.25
33	02050050181		Parking line
34	02050030118		Magneto stator
35	02080020012		Ignition wire fixing sleeve
36	03040050048		Washer B
37	02050160021		Tension block assy
38	03040050072		Wave washer
39	02020130016		Screw shaft
40	70070030022		Fan cover
41	03020030014		Bolt assy M5 * 25
42	03090020022		Small head needle roller bearings
43	02020030014		Piston pin retaining ring
44	043221000		Поршень комплект + кольца
45	02020010049		Piston pin
46	03020020053		Screw assy M5 * 12
47	02020020008		Piston ring
48	1700034		Прокладки для мотокос 43/52 куб.см комплект
49	043112300		Cylinder block
50	03010010062		Hexagon socket screw set M5 * 20
52	03130010020		Spark plug RCJ6Y
53	043216710		Muffler pad
54	043216100		Silencer assy
55	03010010036		Hexagon socket screw M6 * 55
56	02110030079		Knob
57	02070010473		Intake pipe cushion
58	70030020052		Intake pipe
59	03010010058		Screw assy M5 * 25
60	02070010474		Carburetor gasket
62	03040020015		Flat washer 6
63	03050010012		Spring pad 6
