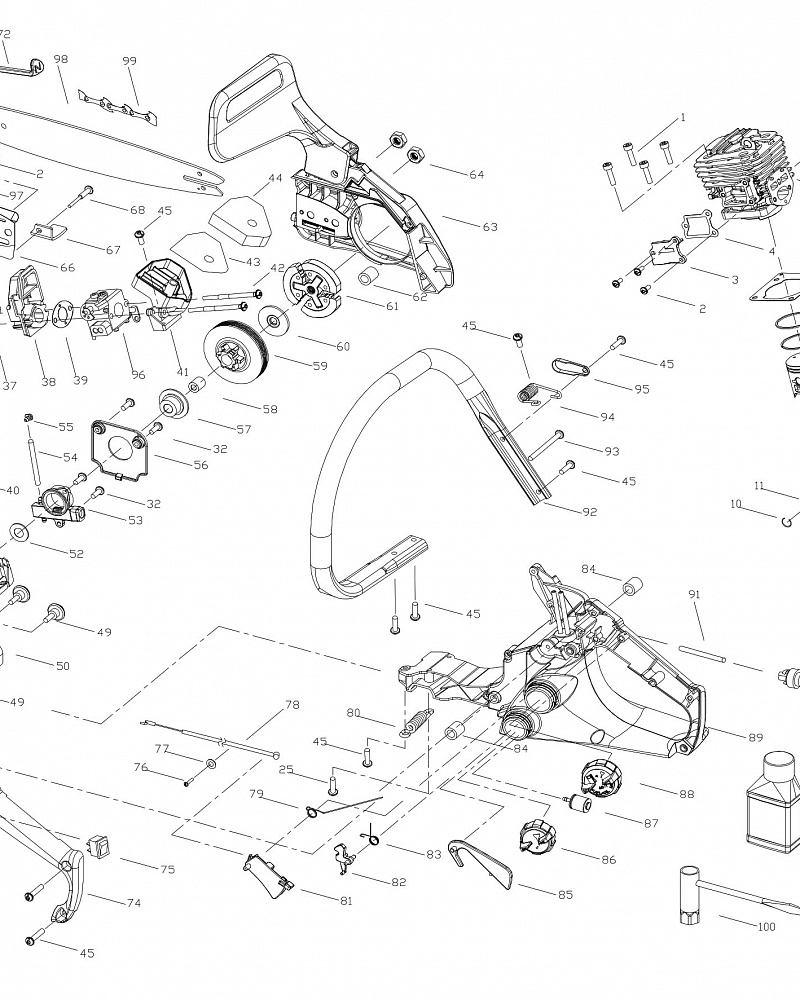

Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена
1	9SGEB-05-20		SCREW
2	9SKKB-04-10		SCREW
3	9067-310802		CAP
4	9014-310803		GASKET
5	9292-311001F		CYLINDER
6	9067-310801		CAP
7	9014-310801		GASKET
8	9189-311001		PISTON RING
9	9290-311001		PISTON
10	9CA-10.3		RING
11	9131-310801		WASHER
12	9NR-K101411		ROLLER
13	9PC10-32		PIN, PISTON
14	9157-332101		SEAL
15	9228-310819		CLY CASE ASS'Y
15-1	9072-310802F		CLY CASE, LEFT
15-2	9PA-03-08S		PIN
15-3	9072-310801F		CLY CASE, RIGHT
15-4	9SKKB-05-27		SCREW
16	03090010034		BEARING
17	9228-310801-A		CRANK/ROD ASS'Y
18	9014-310802		GASKET
19	9CB-32		RING
20	9157-310801		SEAL
21	9059-311001		BUSH
22	9191-310802		SCREW
23	9010-311002		WIRE
24	9NCC-05U		NUT
25	9SKKB-05-14		SCREW
26	9014-310810		COVER, MESH
27	9016-310801		SPARK ARRESTER
28	9228-311005		MUFFLER ASS'Y
29	9014-310804		BAFFLE
30	9191-310803		SCREW
31	9010-311003		WIRE
32	9SKKB-04-14		SCREW
33	9288-310801		IGNITION ASS'Y
34	9NHC-08		NUT
35	9169-310801		FLYWHEEL ASS'Y
36	6221-830301		WOODRUFF KEY
37	9014-310805		SPACER
38	9082-311001		ISOLATER, CARBURETER
39	9014-310006		SPACER
40	9013-311003		RUBBER PLUG
41	9228-311006		AIR GUIDE ASS'Y
42	9SKKB-04-70		SCREW
43	9183-311002		SET
44	9183-311001		SPONGE
45	9SKKBB05-18		SCREW
46	9228-311002		STARTER HOUSING ASS'Y
47	9211-311001		CAP, AIRWAY
48	9024-311001		SPRING
49	9191-311001		SCREW
50	9004-311001		BRACKET
51	9079-311002		BUSH
52	9WFB-10-18		SPACER
53	9228-310805		PUMP ASS'Y
54	9129-311005		PIPE
55	9154-310802		CONNECTOR
56	9072-310806		CAP, ANTI-DUST
57	9073-310803		WORM
58	9NR-K101313		ROLLER
59	9200-311001		DRUM ASS'Y
60	9014-310807		WASHER
61	9228-311004		CLUTCH ASS'Y
62	9013-311002		RUBBER PLUG
63	9228-311001		BRAKE KIT ASS'Y
64	9NAZ-5/16-18		NUT
65	9227-310801		SPIKE
66	9014-310811		SPACER
67	9263-310801		CHAIN CATCH
68	9SKKB-05-32		SCREW
69	9067-311001		SHROUD
70	9134-310801		KNOB
71	9072-311001		HOLDER, CHOKE LEVER
72	9114-311001		LEVER, CHOKE
73	9SKKBB05-27		SCREW
74	9068-311002		HANDLE ASS'Y (L)
75	9022-310701		SWITCH
76	9SKKBB04-10		SCREW
77	9WFZ-04-12		WASHER
78	9010-311001		CABLE, THROTTLE
79	9024-311005		SPRING
80	9024-310803		SPRING
81	9028-311001		TRIGGER, THROTTLE
82	9028-311002		TRIGGER, THROTTLE
83	9024-311003		SPRING
84	9013-311001		RUBBER PLUG
85	9028-310801		TRIGGER, RELEASE
86	9228-310809		OIL CAP ASS'Y
87	9182-310101		FUEL FILTER
88	9228-310817		FUEL CAP ASS'Y
89	9228-311003		HANDLE ASS'Y (R)
90	9142-310002		PRIMER
91	9129-311002		PIPE
92	9068-311001		HANDLE, FRONT
93	9SKKBY05-32		SCREW
94	9024-311002		SPRING
95	9043-311002		CAP, SPRING
96	9287-310301		CARBURETER WT-634
97	9295-310501		SPARK PLUG NGK CMR7H
98	9040-310832F		BAR
99	6220-310813		CHAIN
100	9042-310201		SPANNER
101	9066-310101		OIL
102	9014-311003		SPACER
103	9101-310802		SCABBARD
