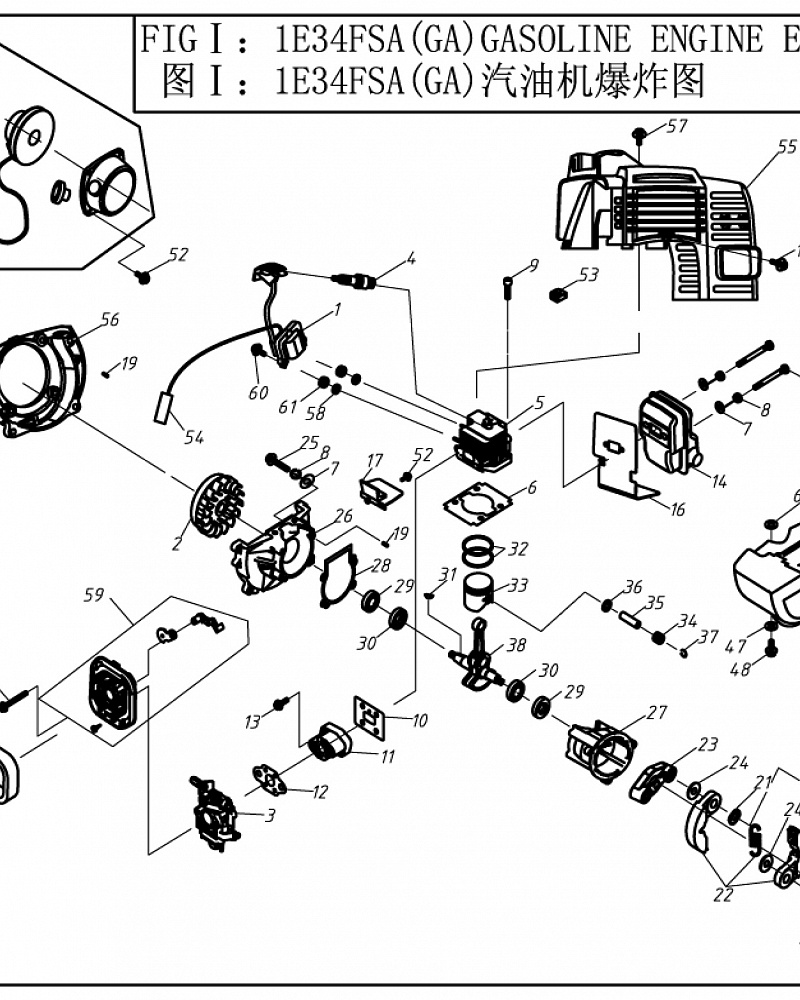

Ссылка №	Артикул	Кол-во	Наименование	Включая	Цена
1-1	02050030124		magneto stater
1-2	02050030032		magneto rotor
1-3	02050020014		carburetor
1-4	03130010013		spark plug
1-5	02060050026		cylinder
1-6	02070010032		sealing washer
1-7	03040020019		spring washer
1-8	03050010014		spring washer
1-9	03010010061		scrow
1-10	02070010019		cylinder side washer
1-11	70030020016		inlet mag
1-12	02070010071		Carburetor side washer
1-13	03020020052		screw assem
1-14	026116000		muffler
1-15	03010010051		screw assem
1-16	02070010162		muffler washer
1-17	70030030164		plate
1-18	03020020032		screw
1-19	03060010002		orientation pin
1-20	02020130001		cluch step screw
1-21	03040050042		cluch washer
1-22	026145100		clutch shoe comp
1-23	70070080018		cluch shoe seat
1-24	03040050052		plat washer
1-25	03010010010		Screw
1-26	70070050107		front half crankcase
1-27	70070050023		rear half crankcase
1-28	02070010119		crankcase gasket
1-29	03100010032		oil seal
1-30	03090010028		bearing
1-31	03070010001		half-moon bon
1-32	02020020003		piston ring
1-33	026121100		piston
1-34	03090020018		needle bearing
1-35	02020010004		piston pin
1-36	02020150002		stop washer
1-37	02020030017		piston pin circlip
1-38	02020120054		crank shaft comp(levototation)
1-39	02050100012		start pulley assem(levorotation)
1-40	02050070016		startter assem(levorotation)
1-41	03020020043		screw assem
1-42	02090010011		cleaner element
1-43	70030040123		cleaner outside cover
1-44	02110030079		knob
1-45	02110020026		oil bop nib
1-46	70050030079		oil lid
1-47	03040010009		spring washer
1-48	03020020051		screw
1-49	03020010013		screw
1-50	02050120002		filter
1-51	02080030025		oil box rubber stopple
1-52	03020020028		screw
1-53	02080020012		stationary bushing
1-54	02050050144		stop switch assy
1-55	70030030695		cylinder cover
1-56	80010020080		fan cover
1-57	03010110007		screw
1-58	03040010008		spring washer
1-59	70080120007		cleaner inside cover
1-60	03020020054		screw
1-61	02070010048		gasket
1-62	02110030050		plastic gasket
